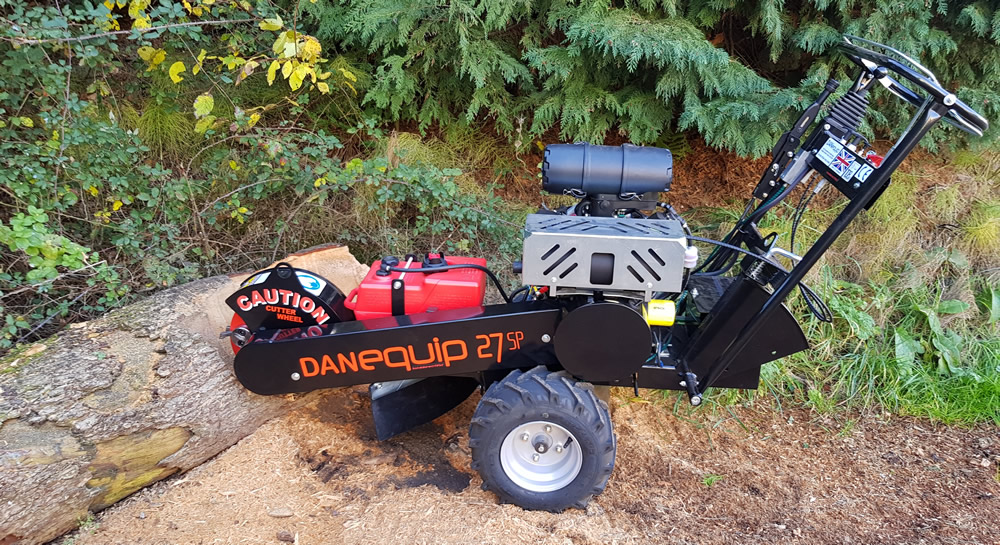

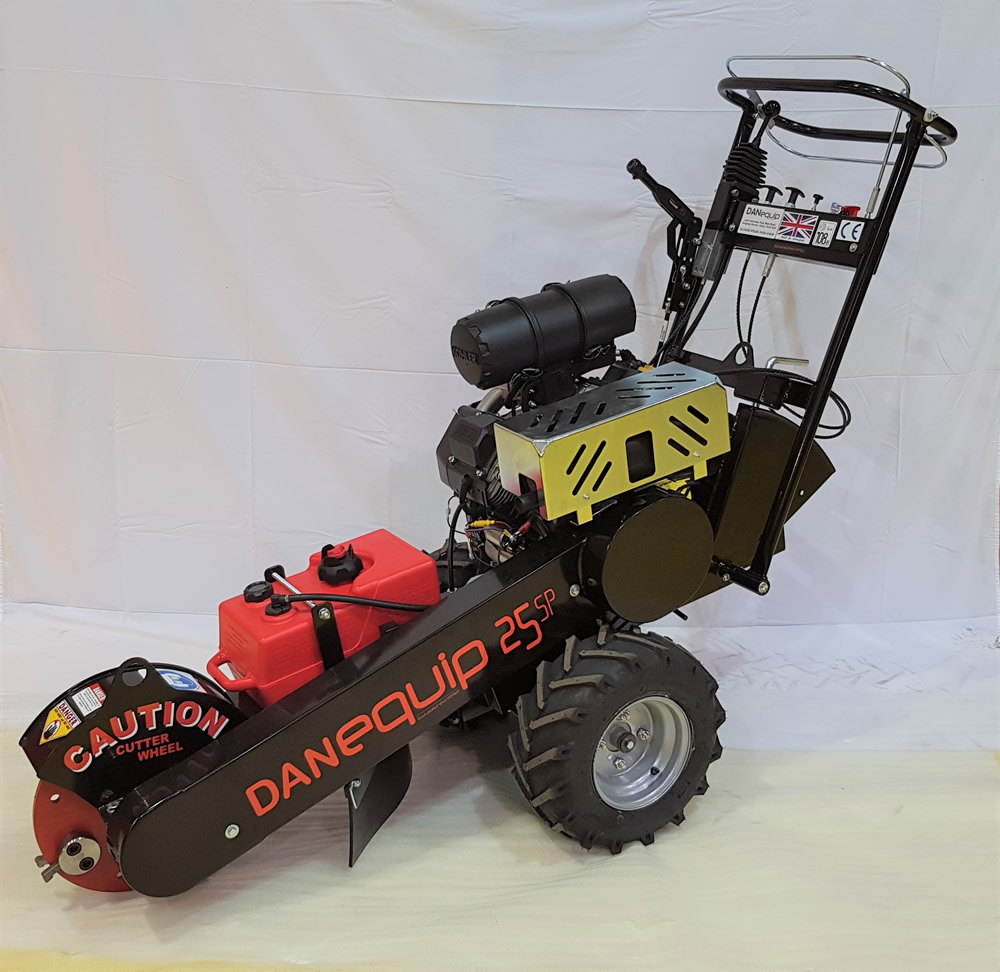

25 & 27SP Narrow Access Stump Grinder

Developed with the same vision and technology as the 13 & 15pp grinders, these models use the tried and tested Kohler Command motors giving power and reliability.

The 25 &27 SP Grinder can be used for the most difficult jobs as they are fitted with a heavy duty air cleaner and an electric clutch which allows the cutter wheel to engage once the operator is ready to start also allowing for the safe loading and unloading of the machine. In spite of the increased power that will tame any task, the machine can still access a 26 inch opening using the 4 inch wheels which can then be changed to 7 inch wheels for greater stability and safety whilst grinding.

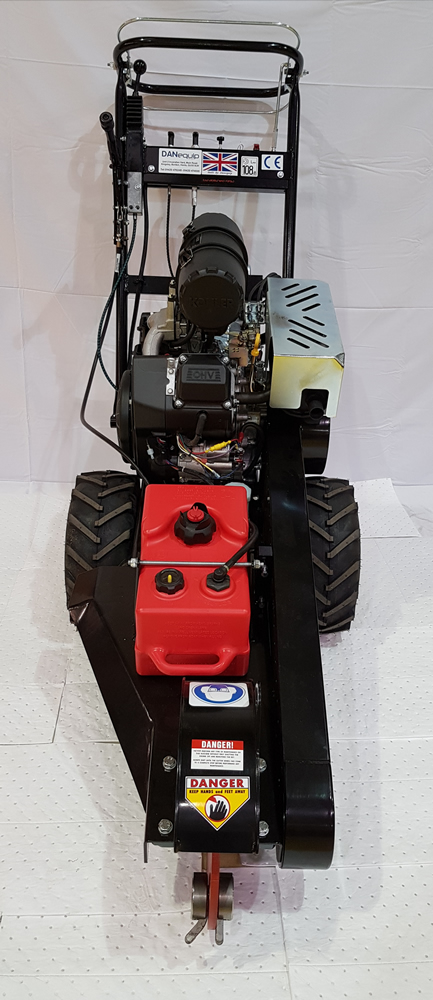

Access a 26 inch opening!

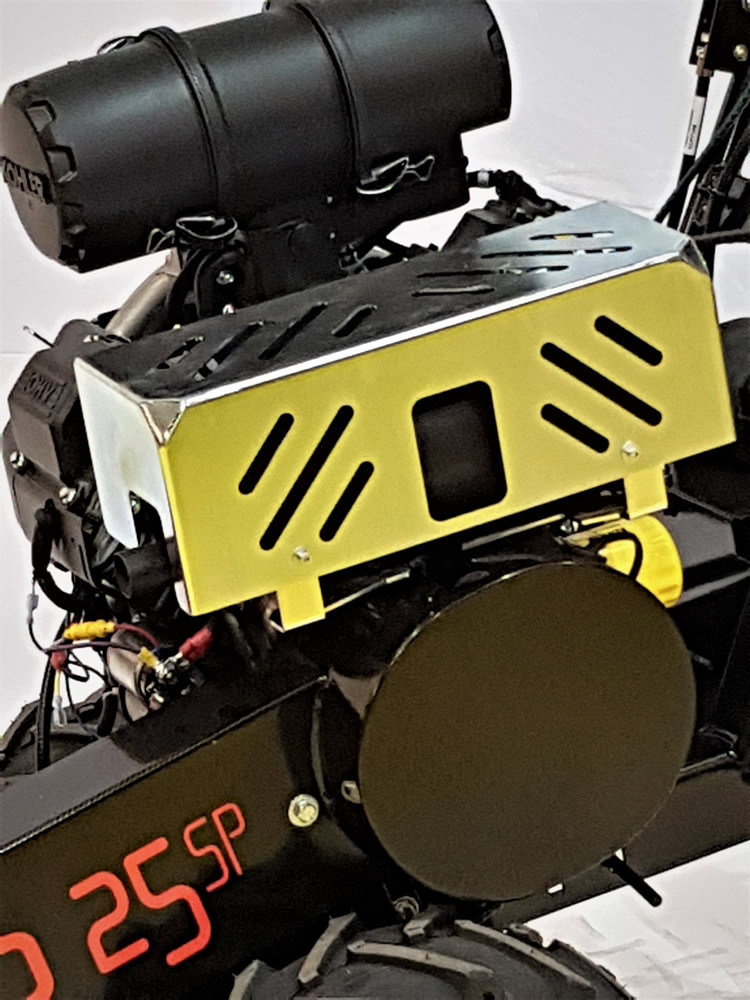

25 & 27 HP

3600 RPM

4 or 7 inch interchangeable wheels

Specification

ENGINE

25SP 27SP
Make Kohler
Horse Power 25hp 27hp
Engine rpm 3600 rpm
Fuel Petrol
Start Electric

MACHINE

Weight 227kgs
Length 2180 mm
Height 1420 mm
Width 710 mm

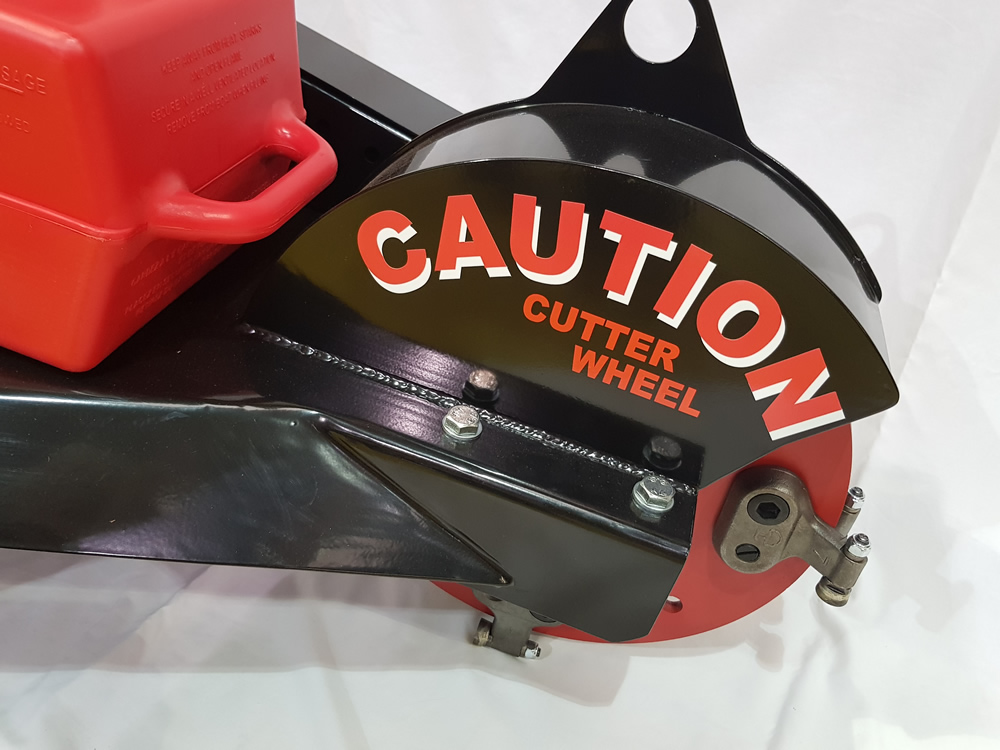

CUTTER WHEEL

Diameter 360 mm
Thickness 12 mm
Bearings 2 x pillow block

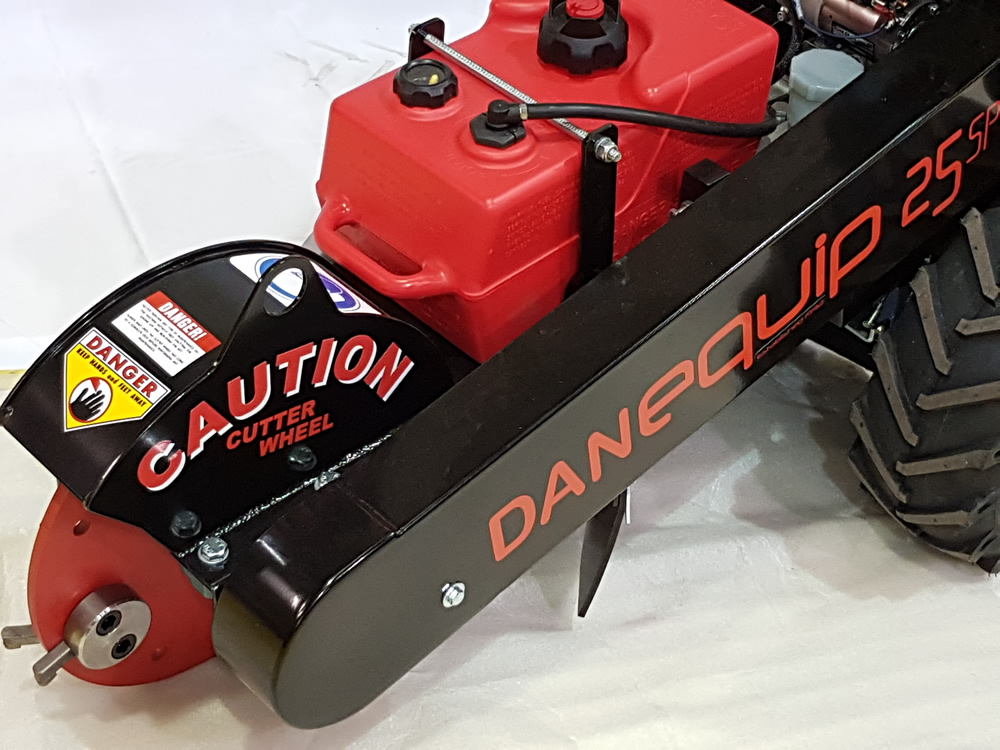

Teeth 8 Universal Carbide Tipped
Pockets 4prs Reversible
Drive Electromagnetic
Clutch 2V Belts
Idler Bearing Tensioners
Ground Travel Hydrostatic Drive
Brake Disc Brake System
